Savox SA-1256TGP Plus High Torque Titanium Gear Digital Servo
Original price was: $89.99.$62.99Current price is: $62.99.
- Free Shipping, Quality Goods
- Have the best deals
- There are quality problems, free return and exchange
- High quality products, low prices.

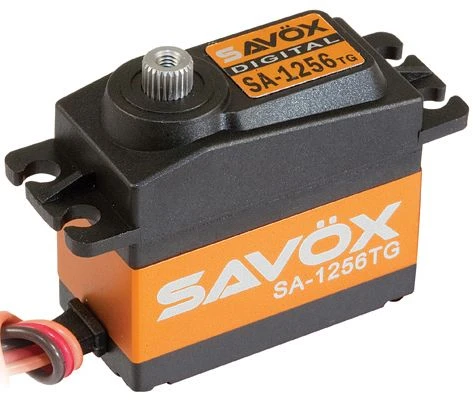

Savox SA-1256TGP Plus High Torque Titanium Gear Digital Servo
“Plus” series servos feature Soft Start and Sanwa SSR compatibility.
Designed to minimize backlash from airplanes
- Combines leading edge technology with super high 12 bit (4096) resolution and titanium gears.
- Super light-weight.
- Coreless motor provides high speed, incredible efficiency, and low power consumption.
- Titanium gears ensure long life and durability.
- The aluminum case design not only looks good but also allows for cooler and smoother operating temps.
- Savox servos are totally green – from materials to production, these servos are environmentally friendly.
- Ideal for plane applications where a minimized backlash is needed.
The Savox SA-1256TG pushes 277.2 oz of torque and this servo is perfect for those who are looking for a minimized backlash to use in the wings of RC planes. The SA-1256TG sports titanium and metal gears to keep things strong and running smooth.

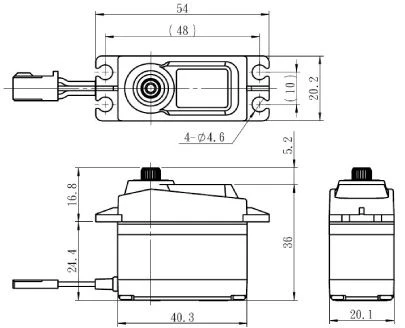

- Dimensions(mm): 40.3×20.2×37.2
- Weight(g): 52.4
- Speed(@4.8V sec/60): .18
- Torque(@4.8V oz-in): 222.2
- Speed(@6.0V sec/60): .15
- Torque(@6.0V oz-in): 277.7
- Gear: Titanium & Aluminum
- Bearing: 2BB
- Case: Aluminum
- Running current (at no load): 100 mA @ 4.8V
- Running current (at no load): 120 mA @ 6.0V
- Stall current (at locked): 4000 mA @ 4.8V
- Stall current (at locked): 5000 mA @ 6.0V
- Idle current (at stopped): 5 mA @ 4.8V
- Idle current (at stopped): 5 mA @ 6.0V
- Limit angle: 200°±10°
- Connector wire gauge: ＃22 AWG
- Connector wire length: 250 ±5 mm
- Horn gear spline: 25T
- Control system: Pulse width modification
- Amplifier type: Digital Controller
- Operating Travel: 100° (when1000→2000 μsec)
- Neutral position: 1500 μsec
- Dead band width: 3 μsec
- Rotating direction: Counterclockwise (when1500→2000 μsec)
- Pulse width range: 800→2200 μsec
- Maximum travel: Approx 130°(when900→2100 μsec)
- 1 Year Limited Warranty
