P200-RX Turbine Engine, 52 Lbs Thrust, By JetCat
Original price was: $388.00.$99.99Current price is: $99.99.
- Free Shipping, Quality Goods
- Have the best deals
- There are quality problems, free return and exchange
- High quality products, low prices.

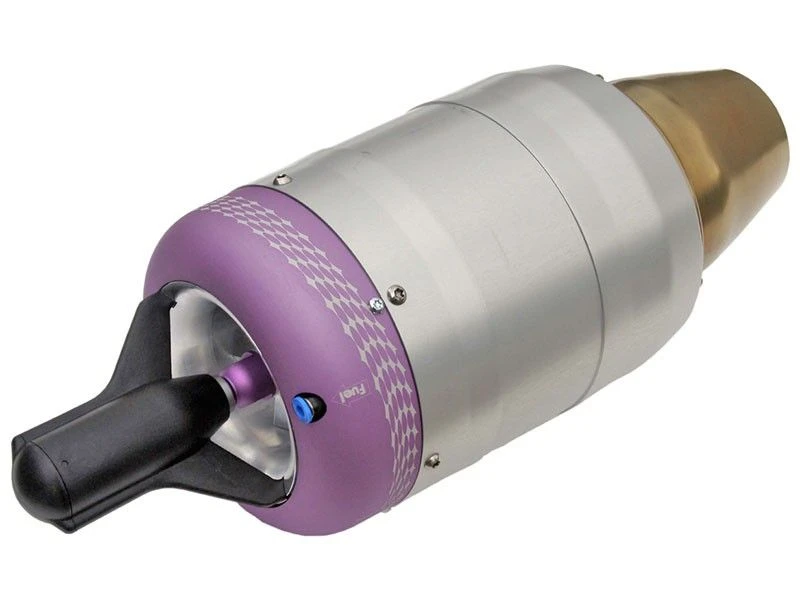

P200-RX Turbine Engine, 52 lbs Thrust, by JetCat
JetCat P-200-RX turbine comes complete with HEAVY DUTY internal starter and includes:
- Jet-tronic ECU (fuel control electronics)
- GSU (Display and Programmer)
- LED I/O board
- Miniature fuel pump
- Electronic starting gas valve
- Electronic Fuel valve
- Fuel tubing
- Tubing connector set
- Filters
- Cable set
- Starting gas tank
- Turbine mounting clamp
- Detailed instruction manual
- Thrust: 52 lbs @ 112,000 RPM
- Weight: 5.53 lb (2510g)
- Diameter: 5.12 inches (130 mm)
- RPM Range: 33,000 – 112,000 RPM
- Exhaust gas temp.: MAX 750°C
- Fuel consumption: 25 oz per/min at full power
- Fuel: Jet A1, 1-K kerosene
- Lubrication: approximately 5% synthetic Oil in the fuel
- Maintenance interval: 25 hours
Internal kerosene starting plug for single fuel operation. Fast startup!
Now Includes the ECU V10.0
The completely redesigned V10.0 ECU is three times smaller than the V6.0 ECU, yet has all its proven capabilities and more at a weight of only 26g!
The updated ECU comprises a high speed digital power bus for control and power supply of all engine peripherals (e.g. engine, fuel pump, solenoids, smoke pump, lighting systems, etc. ) with a minimum of wiring connections.
An on board precision pressure and ambient temperature sensor allows for optimum engine control, independent to environmental conditions.
Includes JetCat Mini-GSU
The JetCat Mini-GSU is an optional miniature Ground Support Unit (GSU). It comprises a 2×16 character alphanumeric backlit LCD display and 10 control keys.
Function wise it can be used as a 100% replacement for our normal GSU. Its small form factor and weight makes it ideally suited for permanent installation in the model.
Connection to ECU`s up to Version 6.0 is via a 8-pin miniature flatcable connector directly to the LED-I/O interface. Connection to ECUs from Version 10.0 is via a 6-pin miniature flatcable directly to the ECU or the LED-I/O interface or 8-pin flat cable to JetCat I/O-interface with charging option.
P200-RX Turbine Engine, 52 lbs Thrust, by JetCat
JetCat P-200-RX turbine comes complete with HEAVY DUTY internal starter and includes:
- Jet-tronic ECU (fuel control electronics)
- GSU (Display and Programmer)
- LED I/O board
- Miniature fuel pump
- Electronic starting gas valve
- Electronic Fuel valve
- Fuel tubing
- Tubing connector set
- Filters
- Cable set
- Starting gas tank
- Turbine mounting clamp
- Detailed instruction manual
- Thrust: 52 lbs @ 112,000 RPM
- Weight: 5.53 lb (2510g)
- Diameter: 5.12 inches (130 mm)
- RPM Range: 33,000 – 112,000 RPM
- Exhaust gas temp.: MAX 750°C
- Fuel consumption: 25 oz per/min at full power
- Fuel: Jet A1, 1-K kerosene
- Lubrication: approximately 5% synthetic Oil in the fuel
- Maintenance interval: 25 hours
Internal kerosene starting plug for single fuel operation. Fast startup!
Now Includes the ECU V10.0
The completely redesigned V10.0 ECU is three times smaller than the V6.0 ECU, yet has all its proven capabilities and more at a weight of only 26g!
The updated ECU comprises a high speed digital power bus for control and power supply of all engine peripherals (e.g. engine, fuel pump, solenoids, smoke pump, lighting systems, etc. ) with a minimum of wiring connections.
An on board precision pressure and ambient temperature sensor allows for optimum engine control, independent to environmental conditions.
Includes JetCat Mini-GSU
The JetCat Mini-GSU is an optional miniature Ground Support Unit (GSU). It comprises a 2×16 character alphanumeric backlit LCD display and 10 control keys.
Function wise it can be used as a 100% replacement for our normal GSU. Its small form factor and weight makes it ideally suited for permanent installation in the model.
Connection to ECU`s up to Version 6.0 is via a 8-pin miniature flatcable connector directly to the LED-I/O interface. Connection to ECUs from Version 10.0 is via a 6-pin miniature flatcable directly to the ECU or the LED-I/O interface or 8-pin flat cable to JetCat I/O-interface with charging option.
