Mks HV747 Digital High-Torque High Voltage Servo
Original price was: $99.70.$69.79Current price is: $69.79.
- Free Shipping, Quality Goods
- Have the best deals
- There are quality problems, free return and exchange
- High quality products, low prices.

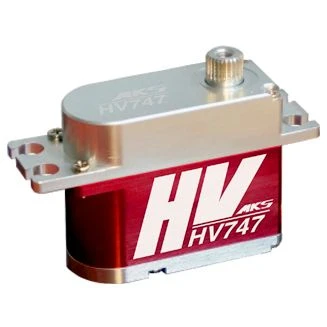

HV747 Digital High-Torque High Voltage Servo, with Titanium Gears, by MKS
This is an MKS HV747 Titanium Gear High Speed Servo with Aluminum Case. This high speed servo is a great choice for glider, airplane and jet tail applications, and was used by Mr.O to achieve a 24.58s world record at the 2013 FAI-F3F World Cup!
Features:
- 12 x 20 mm coreless motor, High efficient, More durable
- 9mm VR, Ultra high-resolution
- Unique gear structure with reduced backlash
Specifications:
- Torque:
- @6.0V: 163.8 oz-in (11.8 kg-cm)
- @7.4V: 191.6 oz-in (13.8 kg-cm)
- @8.2V: 208.3 oz-in (15 kg-cm)
- Speed:
- @6.0V: 0.17 s
- @7.4V: 0.14 s
- @8.2V: 0.13 s
- Weight: 38.55 g

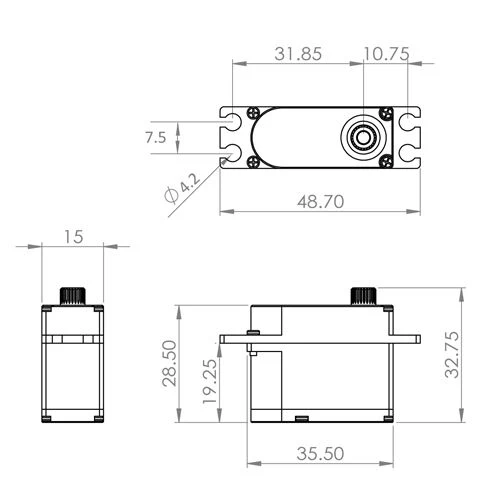

- Dimension: 35.5x15x28.5mm
- Working Voltage: 5.5 ~ 8.4 V DC Volt
- Working Frequency: 1520μs / 333hz
- Dead Band: 0.001 ms (Default)
- Bearing: Dual Ball Bearings
- Motor: Coreless Motor
- Gear: Chrome-Titanium alloy gear
- Electric Current Draw： 2.6A max. (8.2V)│2.4A max. (7.4V)│2.0A max (6.0V)
- Wire Length： 29.5 cm
HV747 Digital High-Torque High Voltage Servo, with Titanium Gears, by MKS
This is an MKS HV747 Titanium Gear High Speed Servo with Aluminum Case. This high speed servo is a great choice for glider, airplane and jet tail applications, and was used by Mr.O to achieve a 24.58s world record at the 2013 FAI-F3F World Cup!
Features:
- 12 x 20 mm coreless motor, High efficient, More durable
- 9mm VR, Ultra high-resolution
- Unique gear structure with reduced backlash
Specifications:
- Torque:
- @6.0V: 163.8 oz-in (11.8 kg-cm)
- @7.4V: 191.6 oz-in (13.8 kg-cm)
- @8.2V: 208.3 oz-in (15 kg-cm)
- Speed:
- @6.0V: 0.17 s
- @7.4V: 0.14 s
- @8.2V: 0.13 s
- Weight: 38.55 g
- Dimension: 35.5x15x28.5mm
- Working Voltage: 5.5 ~ 8.4 V DC Volt
- Working Frequency: 1520μs / 333hz
- Dead Band: 0.001 ms (Default)
- Bearing: Dual Ball Bearings
- Motor: Coreless Motor
- Gear: Chrome-Titanium alloy gear
- Electric Current Draw： 2.6A max. (8.2V)│2.4A max. (7.4V)│2.0A max (6.0V)
- Wire Length： 29.5 cm
