Mks HBL388 X8 Digital Brushless High-Torque High Voltage Servo
Original price was: $224.99.$98.99Current price is: $98.99.
- Free Shipping, Quality Goods
- Have the best deals
- There are quality problems, free return and exchange
- High quality products, low prices.

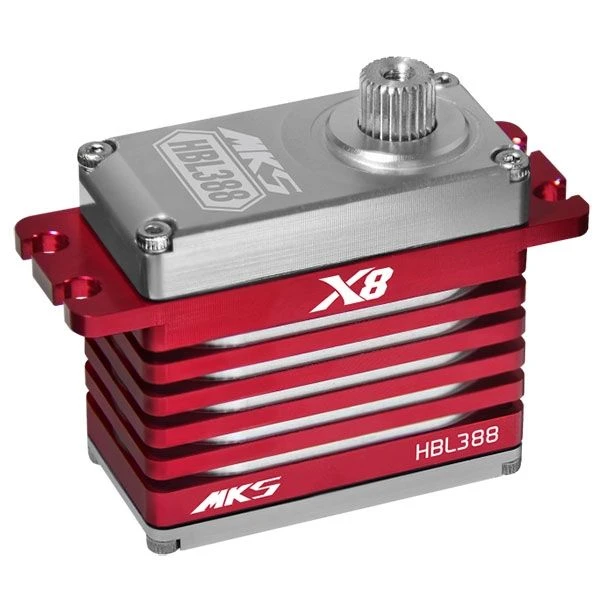

HBL388 X8 Digital Brushless High-Torque High Voltage Servo, with Titanium Gears, by MKS
Note: X8 Servos are Not Compatible with Standard Servo Arms. See Related Items for Available Arms
- Operating Voltage: 5 ~ 8.4 Volts
- Operating Temperature Range: -10 to + 60 Degree C
- Operating Speed (6V): 0.19 sec/60° degrees at no load
- Operating Speed (7.4V): 0.16 sec/60° degrees at no load
- Operating Speed (8.4V): 0.14 sec/60° degrees at no load
- Stall Torque (6V): 694.3 oz/in (50 kg/cm)
- Stall Torque (7.4V): 833.2 oz/in (60 kg/cm)
- Stall Torque (8.4V): 944.3 oz/in (68 kg/cm)
- Motor Type: Japanese-made Brushless Motor
- Dead Band: 0.0008ms (Default)
- Spline Size: 8mm 25tooth X8
- Control System: +Pulse Width Control (PWM)
- Working Frequence: 1520μs / 333Hz
- Potentiometer Drive: Indirect Drive
- Bearing Type: 12×8 mm Double bearings
- Gear Type: Metal Alloy Gear
- Connector Wire Length: 29 cm

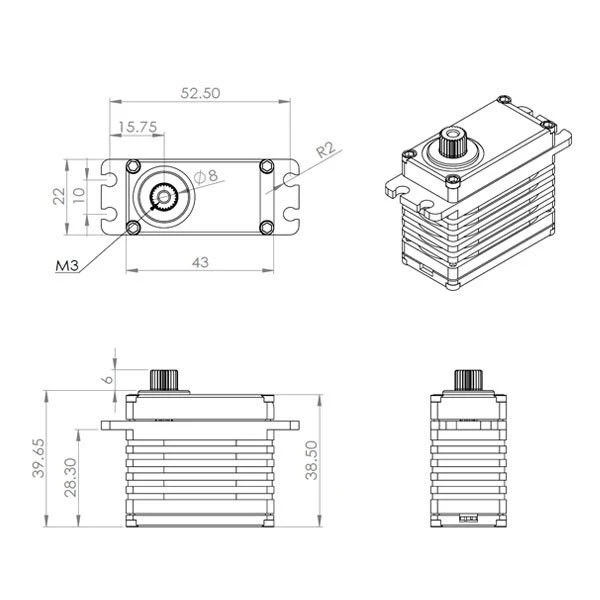

- Dimensions: 43 x 22 x 39.65 mm
- Weight: 93.3g (3.29 oz)
HBL388 X8 Digital Brushless High-Torque High Voltage Servo, with Titanium Gears, by MKS
Note: X8 Servos are Not Compatible with Standard Servo Arms. See Related Items for Available Arms
- Operating Voltage: 5 ~ 8.4 Volts
- Operating Temperature Range: -10 to + 60 Degree C
- Operating Speed (6V): 0.19 sec/60° degrees at no load
- Operating Speed (7.4V): 0.16 sec/60° degrees at no load
- Operating Speed (8.4V): 0.14 sec/60° degrees at no load
- Stall Torque (6V): 694.3 oz/in (50 kg/cm)
- Stall Torque (7.4V): 833.2 oz/in (60 kg/cm)
- Stall Torque (8.4V): 944.3 oz/in (68 kg/cm)
- Motor Type: Japanese-made Brushless Motor
- Dead Band: 0.0008ms (Default)
- Spline Size: 8mm 25tooth X8
- Control System: +Pulse Width Control (PWM)
- Working Frequence: 1520μs / 333Hz
- Potentiometer Drive: Indirect Drive
- Bearing Type: 12×8 mm Double bearings
- Gear Type: Metal Alloy Gear
- Connector Wire Length: 29 cm
- Dimensions: 43 x 22 x 39.65 mm
- Weight: 93.3g (3.29 oz)
