Heater Muffler, New Manufacture, For Cessna Model 180
Original price was: $386.00.$96.99Current price is: $96.99.
- Free Shipping, Quality Goods
- Have the best deals
- There are quality problems, free return and exchange
- High quality products, low prices.
Nicrocraft Heater Muffler, New Manufacture, from Wall Colmonoy
For Cessna Model 180
Includes 8130-3 Airworthiness Approval
Download the Complete Wall Colmonoy Catalog Here
Model 180, S/N 30000 thru 32150 with Continental Engine O-470-A or O-470-J

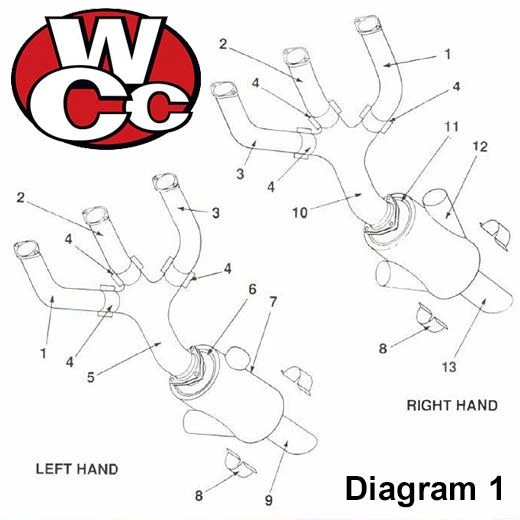

| “Item #” Corresponds to “Diagram 1” Image (See Photos Tab) | ||||
| Item # | Cessna OEM | WCC New | WCC O/H | |
| 1 | Riser | 0750290-6 | 223-01 | 0750290-6R |
| 2 | Riser | 0750290-7 | 223-02 | 0750290-7R |
| 3 | Riser | 0750290-8 | 223-03 | 0750290-8R |
| 4 | Clamp Assembly | – | 192-001 | – |
| 5 | Collector, Left Hand | 0750290-23 | 320-23 | 0750290-23R |
| 1, 2, 3, 5 | Collector Assembly, Left Hand | – | 320-23A | 0750290-23R |
| 6 | Heater Muffler, Left Hand | 0750290-3 | 225-5 | 0750290-3R |
| 7 | Shroud Assembly, Left Hand | 0750290-19 | 320-01 | – |
| 8 | Clamp Assembly | – | 186-8 | – |
| 9 | Tailpipe, Left Hand | 0750290-25 | 320-25 | 0750290-25R |
| 10 | Collector, Right Hand | 0750290-24 | 320-24 | 0750290-24R |
| 1, 2, 3, 10 | Collector Assembly, Right Hand | – | 320-24A | 0750290-24R |
| 11 | Heater Muffler, Right Hand | 0750290-3 | 225-5 | 0750290-3R |
| 12 | Shroud Assembly, Right Hand | 0750290-20 | 320-02 | – |
| 13 | Tailpipe, Right Hand | 0750290-26 | 320-26 | 0750290-26R |
| See “Related Products” Tab for Additional Left or Right Hand Models | ||||
Wall Colmonoy Nicrocraft aircraft exhaust systems are built to take the heat. Components are engineered to meet or exceed original equipment standards. Years of parts-repair experience have led to design improvements, which enhance service life of Nicrocraft’s exhaust components.
Nicrocraft products are performance proven. That’s why OEM manufacturers use our parts. New and overhauled components are hydrogen furnace stress relieved. This extra step increases service life and improves performance. The internal parts are stronger. Wall Colmonoy fuses their exclusive high-strength Nicrobraz alloys to baffles and other internal parts to increase durability.
Products are individually leak tested. Exhaust system failure can lead to carbon monoxide poisoning, loss of engine power, excessive engine wear and even fire. That’s why each Nicrocraft component is subjected to a rigid leak testing procedures assuring 100% compliance with applicable safety and performance standards. Backed by a full 12-month, unlimited-hours warranty and 25 years of manufacturing and overhauling exhaust components.
Nicrocraft Heater Muffler, New Manufacture, from Wall Colmonoy
For Cessna Model 180
Includes 8130-3 Airworthiness Approval
Download the Complete Wall Colmonoy Catalog Here
Model 180, S/N 30000 thru 32150 with Continental Engine O-470-A or O-470-J
| “Item #” Corresponds to “Diagram 1” Image (See Photos Tab) | ||||
| Item # | Cessna OEM | WCC New | WCC O/H | |
| 1 | Riser | 0750290-6 | 223-01 | 0750290-6R |
| 2 | Riser | 0750290-7 | 223-02 | 0750290-7R |
| 3 | Riser | 0750290-8 | 223-03 | 0750290-8R |
| 4 | Clamp Assembly | – | 192-001 | – |
| 5 | Collector, Left Hand | 0750290-23 | 320-23 | 0750290-23R |
| 1, 2, 3, 5 | Collector Assembly, Left Hand | – | 320-23A | 0750290-23R |
| 6 | Heater Muffler, Left Hand | 0750290-3 | 225-5 | 0750290-3R |
| 7 | Shroud Assembly, Left Hand | 0750290-19 | 320-01 | – |
| 8 | Clamp Assembly | – | 186-8 | – |
| 9 | Tailpipe, Left Hand | 0750290-25 | 320-25 | 0750290-25R |
| 10 | Collector, Right Hand | 0750290-24 | 320-24 | 0750290-24R |
| 1, 2, 3, 10 | Collector Assembly, Right Hand | – | 320-24A | 0750290-24R |
| 11 | Heater Muffler, Right Hand | 0750290-3 | 225-5 | 0750290-3R |
| 12 | Shroud Assembly, Right Hand | 0750290-20 | 320-02 | – |
| 13 | Tailpipe, Right Hand | 0750290-26 | 320-26 | 0750290-26R |
| See “Related Products” Tab for Additional Left or Right Hand Models | ||||
Wall Colmonoy Nicrocraft aircraft exhaust systems are built to take the heat. Components are engineered to meet or exceed original equipment standards. Years of parts-repair experience have led to design improvements, which enhance service life of Nicrocraft’s exhaust components.
Nicrocraft products are performance proven. That’s why OEM manufacturers use our parts. New and overhauled components are hydrogen furnace stress relieved. This extra step increases service life and improves performance. The internal parts are stronger. Wall Colmonoy fuses their exclusive high-strength Nicrobraz alloys to baffles and other internal parts to increase durability.
Products are individually leak tested. Exhaust system failure can lead to carbon monoxide poisoning, loss of engine power, excessive engine wear and even fire. That’s why each Nicrocraft component is subjected to a rigid leak testing procedures assuring 100% compliance with applicable safety and performance standards. Backed by a full 12-month, unlimited-hours warranty and 25 years of manufacturing and overhauling exhaust components.
