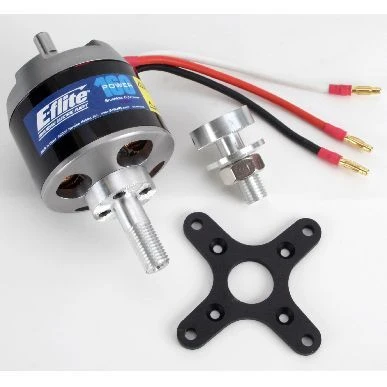

E-Flite Power 160 Outrunner Brushless Motor
Original price was: $172.99.$95.99Current price is: $95.99.
- Free Shipping, Quality Goods
- Have the best deals
- There are quality problems, free return and exchange
- High quality products, low prices.
E-flite Power 160 Outrunner Brushless Motor
- Equivalent to or surpassing the power of a 160-size, 2-stroke, glow engine for 12–20 lb (5.4–9 kg) airplanes
- Ideal for 3D airplanes up to 15 lb (6.8 kg)
- High-torque alternative to inrunner brushless motors
- Includes mount and mounting hardware
- External rotor design for better cooling
- High-quality construction with ball bearings and hardened 8mm steel shaft
- Includes two 12mm prop shaft adapters tapped out for 10–32 threads
- Ideal for models requiring up to 2700 watts of power
The Power 160 is designed to deliver clean and quiet power equivalent to or surpassing the power of a 160-size 2-stroke glow engine for sport and scale airplanes weighing 12 to 20 pounds (5.4 to 9 kg), 3D airplanes up to 15 pounds (6.8 kg), or models requiring up to 2700 watts of power. It provides excellent power for the popular 27% scale aerobatic models such as the Hangar 9 Extra 260, scale performance for the Hangar 9 P-47D Thunderbolt 150 ARF, and extreme performance for models like the famous Ultra Stick Lite.
Needed to Complete: 85A-110A HV brushless ESC, 9S–10S Li-Po or 28- to 32-cell Ni-MH/Ni-Cd, 18×8 to 20×10 prop
Specifications
- Type: Brushless outrunner
- Size: Equivalent to or surpassing the power of a 160-size 2-stroke glow engine
- Bearings or Bushings: One 8 x 19 x 6mm Bearing, and Two 8 x 16 x 5 Bearings
- Wire Gauge: 13
- Recommended Prop Range: 18×8 to 20×10
- Voltage: 33.3–38.4
- RPM/Volt (Kv): 245
- Resistance (Ri): .03 ohms
- Idle Current (Io): 1.45A @ 10V
- Continuous Current: 60A
- Maximum Burst Current: 78A (15 sec)
- Cells: 28–32 Ni-MH/Ni-Cd or 9S–10S Li-Po
- Speed Control: 85–110A High Voltage Brushless
- Weight: 650 g (23.0 oz)
- Overall Diameter: 63mm (2.50 in)
- Shaft Diameter: 8mm (.30 in) (Includes two 12mm threaded prop shaft adapters with 1.5 pitch)
- Overall Length: 64mm (2.50 in)
E-flite Power 160 Outrunner Brushless Motor
- Equivalent to or surpassing the power of a 160-size, 2-stroke, glow engine for 12–20 lb (5.4–9 kg) airplanes
- Ideal for 3D airplanes up to 15 lb (6.8 kg)
- High-torque alternative to inrunner brushless motors
- Includes mount and mounting hardware
- External rotor design for better cooling
- High-quality construction with ball bearings and hardened 8mm steel shaft
- Includes two 12mm prop shaft adapters tapped out for 10–32 threads
- Ideal for models requiring up to 2700 watts of power
The Power 160 is designed to deliver clean and quiet power equivalent to or surpassing the power of a 160-size 2-stroke glow engine for sport and scale airplanes weighing 12 to 20 pounds (5.4 to 9 kg), 3D airplanes up to 15 pounds (6.8 kg), or models requiring up to 2700 watts of power. It provides excellent power for the popular 27% scale aerobatic models such as the Hangar 9 Extra 260, scale performance for the Hangar 9 P-47D Thunderbolt 150 ARF, and extreme performance for models like the famous Ultra Stick Lite.
Needed to Complete: 85A-110A HV brushless ESC, 9S–10S Li-Po or 28- to 32-cell Ni-MH/Ni-Cd, 18×8 to 20×10 prop
Specifications
- Type: Brushless outrunner
- Size: Equivalent to or surpassing the power of a 160-size 2-stroke glow engine
- Bearings or Bushings: One 8 x 19 x 6mm Bearing, and Two 8 x 16 x 5 Bearings
- Wire Gauge: 13
- Recommended Prop Range: 18×8 to 20×10
- Voltage: 33.3–38.4
- RPM/Volt (Kv): 245
- Resistance (Ri): .03 ohms
- Idle Current (Io): 1.45A @ 10V
- Continuous Current: 60A
- Maximum Burst Current: 78A (15 sec)
- Cells: 28–32 Ni-MH/Ni-Cd or 9S–10S Li-Po
- Speed Control: 85–110A High Voltage Brushless
- Weight: 650 g (23.0 oz)
- Overall Diameter: 63mm (2.50 in)
- Shaft Diameter: 8mm (.30 in) (Includes two 12mm threaded prop shaft adapters with 1.5 pitch)
- Overall Length: 64mm (2.50 in)
