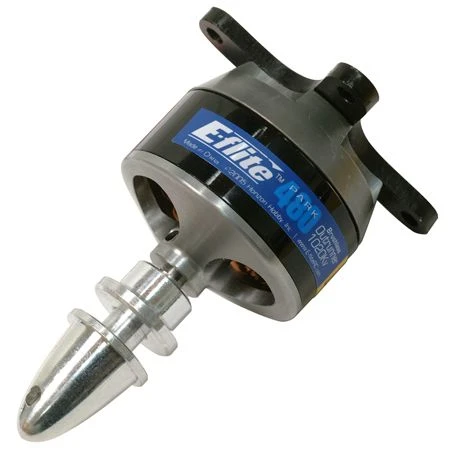

E-Flite Park 480 Outrunner Brushless Motor
Original price was: $57.99.$40.59Current price is: $40.59.
- Free Shipping, Quality Goods
- Have the best deals
- There are quality problems, free return and exchange
- High quality products, low prices.
E-flite Park 480 Outrunner 1020Kv Brushless Motor
- Perfect match for 3D park flyers weighing 20–30 oz (565–850 g)
- Ideal for scale park flyers 25–35 oz (710–990 g)
- Ideal for models requiring up to 275 watts of power
- High-torque, direct-drive alternative to inrunner brushless motors
- Includes mount, prop adapters, and mounting hardware
- External rotor design—4mm shaft can easily be reversed for alternative motor installations
- Slotted 12-pole outrunner design
- High-quality construction with ball bearings and hardened steel shaft
- Quiet, lightweight operation
The Park 480 Brushless Outrunner motor is designed to deliver clean and quiet power for 3D park flyers weighing 20 to 30 ounces (565 to 850 grams), scale park flyers weighing 25 to 35 ounces (710 to 990 grams), or models requiring up to 275 watts of power. It’s an especially good match for E-flite’s Mini Edge 3D ARF (EFL2225) and Mini Funtana 3D ARF (EFL2075), and it would provide extreme power for sport park flyers such as the Mini Ultra Stick ARF (EFL2250). Specifically this 1020Kv option can handle more current than the 920Kv version, so it is more efficient when matched with the Thunder Power Pro-Lite cells.
Needed to Complete: 25A–40A brushless ESC, 2S–3S Li-Po or 6- to 10-cell Ni-MH/Ni-Cd, 10×7–12×6 propeller
Specifications
- Type: Brushless outrunner
- Size: Park flyer
- Bearings or Bushings: One 4 x 9 x 4mm Bearing, and One 4 x 10 x 4mm Bearing
- Wire Gauge: 16
- Recommended Prop Range: 10×7 to 12×6
- Voltage: 7.2 to 12
- RPM/Volt (Kv): 1020
- Resistance (Ri): .06 ohms
- Idle Current (Io): 1.10A @ 8V
- Continuous Current: 22A
- Maximum Burst Current: 28A (15 sec)
- Cells: 6–10 Ni-Cd/Ni-MH or 2–3S Li-Po
- Speed Control: 25A to 40A brushless
- Weight: 87 g (3.1 oz)
- Overall Diameter: 35mm (1.40 in)
- Shaft Diameter: 4mm (.16 in)
- Overall Length: 33mm (1.30 in)
E-flite Park 480 Outrunner 1020Kv Brushless Motor
- Perfect match for 3D park flyers weighing 20–30 oz (565–850 g)
- Ideal for scale park flyers 25–35 oz (710–990 g)
- Ideal for models requiring up to 275 watts of power
- High-torque, direct-drive alternative to inrunner brushless motors
- Includes mount, prop adapters, and mounting hardware
- External rotor design—4mm shaft can easily be reversed for alternative motor installations
- Slotted 12-pole outrunner design
- High-quality construction with ball bearings and hardened steel shaft
- Quiet, lightweight operation
The Park 480 Brushless Outrunner motor is designed to deliver clean and quiet power for 3D park flyers weighing 20 to 30 ounces (565 to 850 grams), scale park flyers weighing 25 to 35 ounces (710 to 990 grams), or models requiring up to 275 watts of power. It’s an especially good match for E-flite’s Mini Edge 3D ARF (EFL2225) and Mini Funtana 3D ARF (EFL2075), and it would provide extreme power for sport park flyers such as the Mini Ultra Stick ARF (EFL2250). Specifically this 1020Kv option can handle more current than the 920Kv version, so it is more efficient when matched with the Thunder Power Pro-Lite cells.
Needed to Complete: 25A–40A brushless ESC, 2S–3S Li-Po or 6- to 10-cell Ni-MH/Ni-Cd, 10×7–12×6 propeller
Specifications
- Type: Brushless outrunner
- Size: Park flyer
- Bearings or Bushings: One 4 x 9 x 4mm Bearing, and One 4 x 10 x 4mm Bearing
- Wire Gauge: 16
- Recommended Prop Range: 10×7 to 12×6
- Voltage: 7.2 to 12
- RPM/Volt (Kv): 1020
- Resistance (Ri): .06 ohms
- Idle Current (Io): 1.10A @ 8V
- Continuous Current: 22A
- Maximum Burst Current: 28A (15 sec)
- Cells: 6–10 Ni-Cd/Ni-MH or 2–3S Li-Po
- Speed Control: 25A to 40A brushless
- Weight: 87 g (3.1 oz)
- Overall Diameter: 35mm (1.40 in)
- Shaft Diameter: 4mm (.16 in)
- Overall Length: 33mm (1.30 in)
