BatShare With Dual 22 AWG Outputs
Original price was: $29.95.$20.97Current price is: $20.97.
- Free Shipping, Quality Goods
- Have the best deals
- There are quality problems, free return and exchange
- High quality products, low prices.

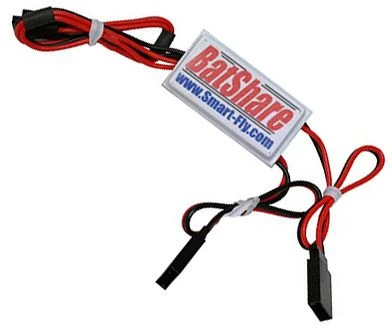

BatShare with Dual 22 AWG Outputs
The Smart-Fly BatShare and BatShare HD enables you to use two battery packs and two switches to provide Dual-Redundant security to your airborne system, just like in full-size aircraft. With the Smart-Fly BatShare, you can tolerate a single failure (open-circuit, short-circuit, low voltage) in either battery pack, switch or battery wiring, without losing radio control.
The Smart-Fly BatShare continually monitors both battery packs and switches for the one with the higher voltage, and routes that to your Rx and servos. You may combine different size packs. In practice, with two good packs, the BatShare draws power equally from both packs, adding their individual capacities. I.e., if Battery #1 is a 6V/1350mAH pack, and Battery #2 is a 6V/2700mAH pack, you will have 4050mAH power supply on-board, with at least 1350mAH to fly on, in case of a failure.
Features:
- High current capability, 12A per input, 24A total
- Very Low Voltage Drop, 0.47V @ 6A, 0.55V @ 12A
- Visual power indicator (LED)
- 22 gauge wiring on inputs with universal connectors
- BatShare: Dual 22 Gauge outputs for minimal voltage drop
- BatShare HD: 18 gauge outputs with Deans Ultra Plug for minimal voltage drop
BatShare with Dual 22 AWG Outputs
The Smart-Fly BatShare and BatShare HD enables you to use two battery packs and two switches to provide Dual-Redundant security to your airborne system, just like in full-size aircraft. With the Smart-Fly BatShare, you can tolerate a single failure (open-circuit, short-circuit, low voltage) in either battery pack, switch or battery wiring, without losing radio control.
The Smart-Fly BatShare continually monitors both battery packs and switches for the one with the higher voltage, and routes that to your Rx and servos. You may combine different size packs. In practice, with two good packs, the BatShare draws power equally from both packs, adding their individual capacities. I.e., if Battery #1 is a 6V/1350mAH pack, and Battery #2 is a 6V/2700mAH pack, you will have 4050mAH power supply on-board, with at least 1350mAH to fly on, in case of a failure.
Features:
- High current capability, 12A per input, 24A total
- Very Low Voltage Drop, 0.47V @ 6A, 0.55V @ 12A
- Visual power indicator (LED)
- 22 gauge wiring on inputs with universal connectors
- BatShare: Dual 22 Gauge outputs for minimal voltage drop
- BatShare HD: 18 gauge outputs with Deans Ultra Plug for minimal voltage drop
