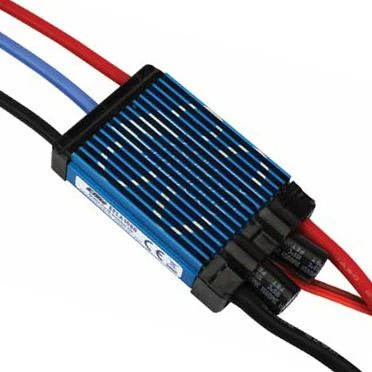

80-Amp E-flite Pro Brushless ESC W/ Switch-Mode BEC
Original price was: $114.99.$80.49Current price is: $80.49.
- Free Shipping, Quality Goods
- Have the best deals
- There are quality problems, free return and exchange
- High quality products, low prices.
80-Amp E-flite Pro Brushless ESC with Switch-Mode BEC
- Up to 80 amps continuous current with proper air flow and 100 amps burst current (15 seconds)
- 5V switch-mode BEC capable of 5 amps continuous current with 6 amps max burst on any recommended input voltage
- Drive up to 7 analog or 6 digital standard-size servos with the BEC on any recommended input voltage
- 3- to 6-cell Li-Po, 9- to 18-cell Ni-MH/Ni-Cd input voltage
- Programmable motor braking
- Safe power-arm mode prevents accidental starts
- Programmable low voltage cutoff with settings for 3-cell Li-Po (9.2V), 4-cell Li-Po (12V), 5-cell Li-Po (15V), 6-cell Li-Po (18V) or 74% of battery starting voltage
- Programmable throttle input range (1.1ms–1.9ms or 1.2ms–1.8ms)
- Programmable soft start-up rate – .25 second or 1 second
- Auto motor shut down if signal is lost or there is interference
- Programmable timing—5 user-selectable ranges–use with a large variety of brushless motors
- Two operating modes–Airplane or Heli
- Pre-wired connectors—E-flite EC5 on battery input and 4.0mm female gold bullets on motor output leads
When performance matters in your high-current applications, look no further than the E-flite® 80-amp Pro switch-mode ESC. This is a high-quality, efficient sensorless brushless electronic speed control with an integrated switch-mode BEC. It can operate without the need for a separate receiver battery to power your servos and receivers, saving you weight and complication. It is capable of up to 80 amps continuous current when using 3- to 6-series Li-Po battery packs. You can drive up to 7 analog or 6 digital standard-size servos with the BEC on any recommended input voltage. Featuring an exposed, finned heat sink aluminum case with lightweight plastic end-caps, safe power-arming along with advanced programmable features such as low voltage cutoff, braking, timing, throttle input range and more, the E-flite 80-amp Pro switch-mode ESC is truly a ‘pro series’ electronic speed control.
Specifications:
- Amperage: 60 & Up
- Auto Cutoff: Yes
- BEC Continuous Current: 5A
- BEC Voltage: 5.5V Switch-mode
- Brake: Yes
- Cells w/BEC: 9-18 cells NiMH, 3-6S LiPo
- Continuous Maximum Current: 75 – 100A
- Forward: Yes
- Height: 0.62 in (15.5mm)
- Input Connector Types: EC5, 10AWG leads
- Length: 3.0 in (77mm)
- Momentary Peak Current: 100A (15 seconds) Proper Cooling Required
- Output Connector Types: 4mm Gold Bullet, 12AWG leads
- Overload Protection: Yes
- Time Delay Brake: Yes
- Type: Brushless
- Weight: 3.75 oz (106 g)
- Width: 1.6 in (41mm)
80-Amp E-flite Pro Brushless ESC with Switch-Mode BEC
- Up to 80 amps continuous current with proper air flow and 100 amps burst current (15 seconds)
- 5V switch-mode BEC capable of 5 amps continuous current with 6 amps max burst on any recommended input voltage
- Drive up to 7 analog or 6 digital standard-size servos with the BEC on any recommended input voltage
- 3- to 6-cell Li-Po, 9- to 18-cell Ni-MH/Ni-Cd input voltage
- Programmable motor braking
- Safe power-arm mode prevents accidental starts
- Programmable low voltage cutoff with settings for 3-cell Li-Po (9.2V), 4-cell Li-Po (12V), 5-cell Li-Po (15V), 6-cell Li-Po (18V) or 74% of battery starting voltage
- Programmable throttle input range (1.1ms–1.9ms or 1.2ms–1.8ms)
- Programmable soft start-up rate – .25 second or 1 second
- Auto motor shut down if signal is lost or there is interference
- Programmable timing—5 user-selectable ranges–use with a large variety of brushless motors
- Two operating modes–Airplane or Heli
- Pre-wired connectors—E-flite EC5 on battery input and 4.0mm female gold bullets on motor output leads
When performance matters in your high-current applications, look no further than the E-flite® 80-amp Pro switch-mode ESC. This is a high-quality, efficient sensorless brushless electronic speed control with an integrated switch-mode BEC. It can operate without the need for a separate receiver battery to power your servos and receivers, saving you weight and complication. It is capable of up to 80 amps continuous current when using 3- to 6-series Li-Po battery packs. You can drive up to 7 analog or 6 digital standard-size servos with the BEC on any recommended input voltage. Featuring an exposed, finned heat sink aluminum case with lightweight plastic end-caps, safe power-arming along with advanced programmable features such as low voltage cutoff, braking, timing, throttle input range and more, the E-flite 80-amp Pro switch-mode ESC is truly a ‘pro series’ electronic speed control.
Specifications:
- Amperage: 60 & Up
- Auto Cutoff: Yes
- BEC Continuous Current: 5A
- BEC Voltage: 5.5V Switch-mode
- Brake: Yes
- Cells w/BEC: 9-18 cells NiMH, 3-6S LiPo
- Continuous Maximum Current: 75 – 100A
- Forward: Yes
- Height: 0.62 in (15.5mm)
- Input Connector Types: EC5, 10AWG leads
- Length: 3.0 in (77mm)
- Momentary Peak Current: 100A (15 seconds) Proper Cooling Required
- Output Connector Types: 4mm Gold Bullet, 12AWG leads
- Overload Protection: Yes
- Time Delay Brake: Yes
- Type: Brushless
- Weight: 3.75 oz (106 g)
- Width: 1.6 in (41mm)
