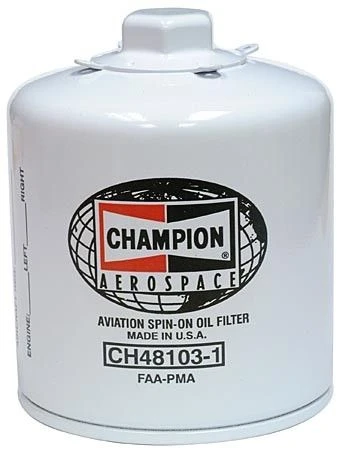

48103 Champion Spin-On Oil Filter
Original price was: $49.25.$34.48Current price is: $34.48.
- Free Shipping, Quality Goods
- Have the best deals
- There are quality problems, free return and exchange
- High quality products, low prices.
48103 Spin-On Oil Filter, from Champion
Click Here for Champion Oil Filter Application
No COD’s on Oil Filters.
- Champion 48103-1
- Length 4.48″
- Thread Female 13/16-16 UNS
Champion Oil Filter Element Construction
Champion Full Flow Oil Filters are designed to supply a continuous flow of filter-clean oil to vital engine parts. Champion’s Strata-Kleen filter media is a full-pleat, resin-impregnated cellulosic micronic filter media designed to trap all harmful particles including metallic chips resulting from abnormal wear. Because the oil flows through many layers of locked in fibers, there is no migration of fiber material to clog engine oil passages or affect bearing surfaces. According to industry-approved tests, the Champion oil filter traps more dirt and harmful particles during its operating time than any other similar filter.
The filter media surrounds a corrugated steel center support tube providing support for each convoluted pleat of filter media, adding significant protection from filter collapse-pressure failure especially during cold-start engine conditions.
Champion Oil Filter Cartridge Types
Champion offers two types of oil filter cartridge to cover all existing aircraft piston engine lube oil system applications.
- Replacement elements service engine-mounted or line-installed filter systems incorporating a permanent housing assembly.
- Modern Spin-on oil filters contain the element, incorporating the anti-drainback valve mechanism (and internal bypass valve 48108-1/48109-1), sealed in a disposable housing.
Champion Spin-On Oil Filter Construction
Champion Spin-on oil filters have a 1″ hex wrench pad spot-welded to a tough 8-gauge steel case designed to meet or exceed engine manufacturer specifications. Safety-wire tabs are conveniently located on hex nut for easy access.
Heavy-duty steel mounting plate is cemented, spot-welded and crimped to case. Even under abnormal oil temperatures and pressures, this primary part of the filter ensures freedom from troublesome oil leakage when installed per instructions printed on the case.
Silicone impregnated filter gasket aids in future removal.
Revised shorter stud length on CH 48110-1 for tight clearance applications.
48103 Spin-On Oil Filter, from Champion
Click Here for Champion Oil Filter Application
No COD’s on Oil Filters.
- Champion 48103-1
- Length 4.48″
- Thread Female 13/16-16 UNS
Champion Oil Filter Element Construction
Champion Full Flow Oil Filters are designed to supply a continuous flow of filter-clean oil to vital engine parts. Champion’s Strata-Kleen filter media is a full-pleat, resin-impregnated cellulosic micronic filter media designed to trap all harmful particles including metallic chips resulting from abnormal wear. Because the oil flows through many layers of locked in fibers, there is no migration of fiber material to clog engine oil passages or affect bearing surfaces. According to industry-approved tests, the Champion oil filter traps more dirt and harmful particles during its operating time than any other similar filter.
The filter media surrounds a corrugated steel center support tube providing support for each convoluted pleat of filter media, adding significant protection from filter collapse-pressure failure especially during cold-start engine conditions.
Champion Oil Filter Cartridge Types
Champion offers two types of oil filter cartridge to cover all existing aircraft piston engine lube oil system applications.
- Replacement elements service engine-mounted or line-installed filter systems incorporating a permanent housing assembly.
- Modern Spin-on oil filters contain the element, incorporating the anti-drainback valve mechanism (and internal bypass valve 48108-1/48109-1), sealed in a disposable housing.
Champion Spin-On Oil Filter Construction
Champion Spin-on oil filters have a 1″ hex wrench pad spot-welded to a tough 8-gauge steel case designed to meet or exceed engine manufacturer specifications. Safety-wire tabs are conveniently located on hex nut for easy access.
Heavy-duty steel mounting plate is cemented, spot-welded and crimped to case. Even under abnormal oil temperatures and pressures, this primary part of the filter ensures freedom from troublesome oil leakage when installed per instructions printed on the case.
Silicone impregnated filter gasket aids in future removal.
Revised shorter stud length on CH 48110-1 for tight clearance applications.
